| Article number | 3230.2852 |
|---|---|
| Catalog Number | GPLV5 |
| Custom tarif number | 84148051 |

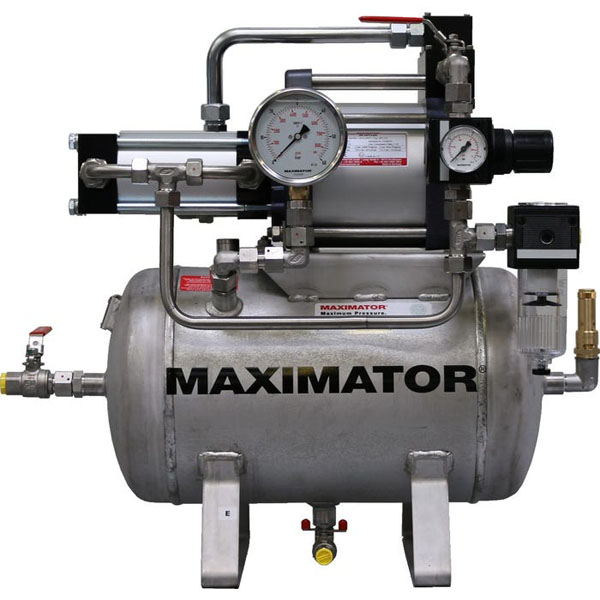

| Design | Accumulator assembly |
| Article number | 3230.2852 |
|---|---|
| Catalog Number | GPLV5 |
| Custom tarif number | 84148051 |
| Design | Accumulator assembly |
| Type / pressure generator | GPLV5 |
| Fluid | Compressed air |
| Min. Drive pressure | 1 bar |
| Max. Drive pressure | 10 bar |
| Outlet pressure max. | 40 bar (580 psi) |
| Air control unit | C2 |
| Accumulator volume | 20 Liter |
| Accumulator pressure | 40 bar |
| Number of outlets | 1 |
| Drive pressure PL | 8B - 1/2 BSPP with seal outside |
| Pressure outlet P | 8B - 1/2 BSPP with seal outside |
| Bleed connection | 4B - 1/4 BSPP with seal outside |
| Pressure bleed | EVH - Pressure bleed manual |
| Pressure gauge | 0-60 bar ø 100 mm |
| Dimensions (L x W x H) approx. | 700 x 415 x 640 mm |
| Weight approx. | 44 kg |
