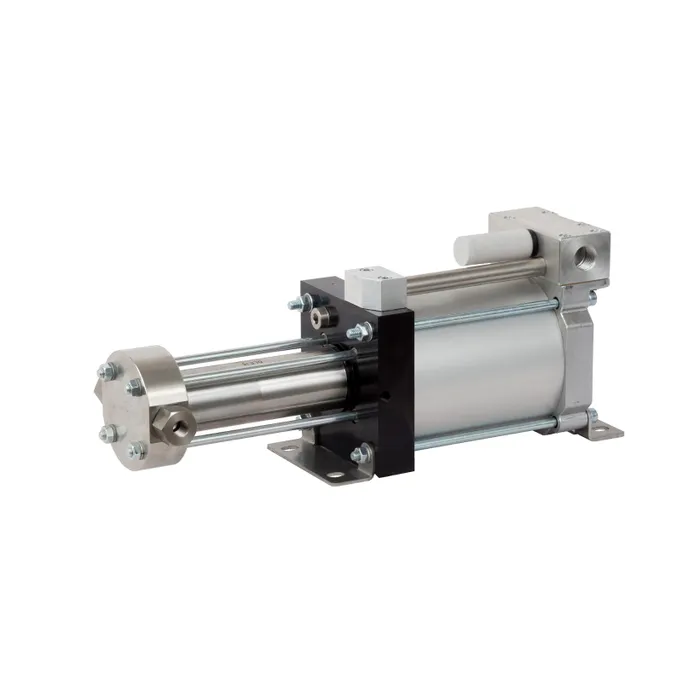

| Article number | 3220.0506 |
|---|---|
| Catalog number | SPLV 10 |
| Outlet pressure max. | 100 bar (1,450 psi) |
| Pressure ratio | 1:10 |
| Number of air drive pistons | 1 |
| Article number | 3220.0506 |
|---|---|
| Catalog number | SPLV 10 |
| Outlet pressure max. | 100 bar (1,450 psi) |
| Pressure ratio | 1:10 |
| Number of air drive pistons | 1 |
| Mode of action | Single-acting |
| Gas inlet pressure min. | 1 bar (15 psi) |
| Min. Drive pressure | 1 bar |
| Max. Drive pressure | 10 bar |
| Booster options | Standard |
| Air drive inlet PL | 8B - 1/2 BSPP with seal outside |
| Inlet A | 4B - 1/4 BSPP with seal outside |
| Outlet B | 4B - 1/4 BSPP with seal outside |
| ATEX Directive | II -/2G Ex h IIB+H2 T4 -/Gb X |
| Dimensions (L x W x H) approx. | 440 x 158 x 178 mm |
| Weight approx. | 10 kg |
Unfortunately, there are currently no files available for the selected article number. Please use the contact form to send a request or ask for more information.
If you need additional spare/wearing parts for the selected product or products already in use, please contact us.
 |
Seal kit HPArticle number 3630.2603 Recommended Quantity 1 Schematic VP16.02.100 |
|---|---|
|
Seal kit spoolArticle number 3640.1403 Recommended Quantity 1 Schematic VP54.01.103 |
|
Seal kit airArticle number 3640.1470
|
