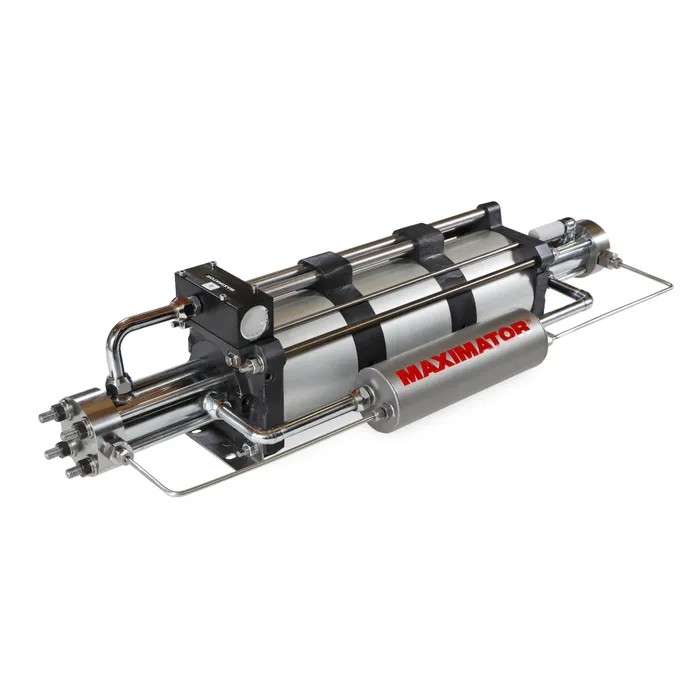

| Article number | 3210.0180 |
|---|---|
| Catalog number | DLE 30-75-3-GU-ZK-36 |
| Outlet pressure max. | 2,400 bar (34,800 psi) |
| Pressure ratio | 1:90 / 1:225 |
| Number of air drive pistons | 3 |
| Article number | 3210.0180 |
|---|---|
| Catalog number | DLE 30-75-3-GU-ZK-36 |
| Outlet pressure max. | 2,400 bar (34,800 psi) |
| Pressure ratio | 1:90 / 1:225 |
| Number of air drive pistons | 3 |
| Gas inlet pressure min. | 30 bar (435 psi) |
| Gas inlet pressure max. | 2,400 bar (34,800 psi) |
| Min. Drive pressure | 1 bar |
| Max. Drive pressure | 10 bar |
| Booster options | Intercooler between the two stages of a two stage booster |
| Air drive inlet PL | 12B - 3/4 BSPP with seal outside |
| Inlet A | 4B - 1/4 BSPP with seal outside |
| Outlet B | 9/16-18UNF (4H - incl. Collar & Gland) |
| ATEX Directive | II 2G/2D IIC c TX |
| Dimensions (L x W x H) approx. | 1014 x 283 x 233 mm |
| Weight approx. | 38 kg |
Unfortunately, there are currently no files available for the selected article number. Please use the contact form to send a request or ask for more information.
If you need additional spare/wearing parts for the selected product or products already in use, please contact us.
 |
Seal kit spoolArticle number 3620.0102 Recommended Quantity 1 Schematic VP15.01.00 |
|---|---|
|
Seal kit HPArticle number 3630.0795 Recommended Quantity 1 Schematic VP16.02.42 |
|
Seal kit airArticle number 3630.2902 Recommended Quantity 1 Schematic VP16.02.40.03 |
|
Seal kit HPArticle number 3630.4454 Recommended Quantity 1 Schematic VP16.02.34.09 |
|
Replacement kit valvesArticle number 3630.4490 Recommended Quantity 1 Schematic VP16.02.52.08 |
|
Replacement kit valvesArticle number 3630.4801 Recommended Quantity 1
|
