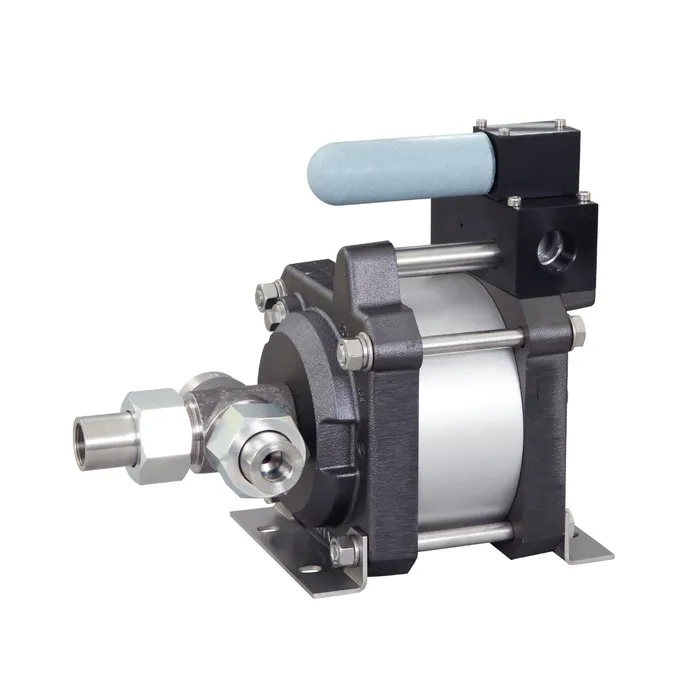

| Article number | G series - G 500 |
|---|---|
| Fluid | Water, Oil |
| Pressure range | up to 4,500 bar / 65,250 psi |
| Number of air drive pistons | 1 |
| Mode of action | Single-acting |
| Catalog Number | G 500LS |
|---|---|
| Fluid | Oil, Water |
| ATEX Directive | II 2G/2D IIB c TX |
| Outlet pressure max. | 4,500 bar (65,250 psi) |
| Pressure range | up to 4,500 bar / 65,250 psi |
| Pressure ratio | 1:519 |
| Number of air drive pistons | 1 |
| Mode of action | Single-acting |
| Min. Drive pressure | 1 bar |
| Max. Drive pressure | 10 bar |

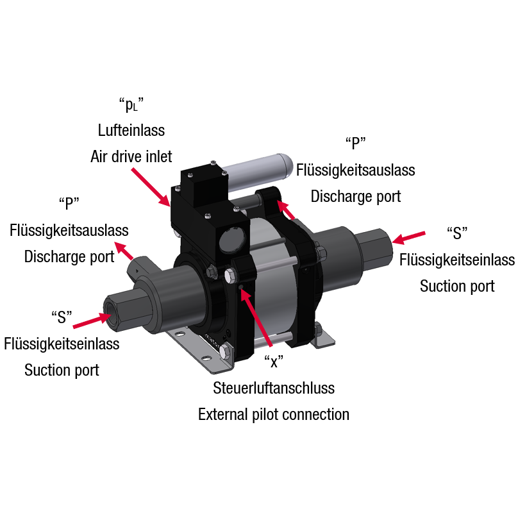

| Air drive inlet PL | 12B - 3/4 BSPP with seal outside |
| Suction port S | 4B - 1/4 BSPP with seal outside |
| Discharge port P | 9/16-18UNF (4H - incl. Collar & Gland) |
| Air drive section modification | Air actuated suction stroke (Standard) |
| HP section modification | Standard |

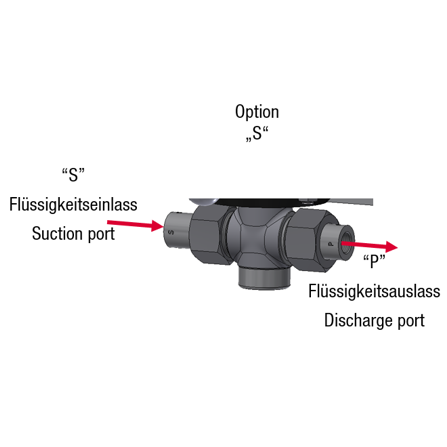

| More modifications | Side inlet on pump outlet |
| Seal kit (inlet/outlet) | NBR – Nitrile rubber, good cold and deformation behavior at -30°C to 100°C, media compatibility: low, elastic |
| Fluid compatibility | Standard |
| Temperature option | Standard |
| Dimensions (L x W x H) approx. | 372 x 181 x 272 mm |
| Weight approx. | 13.5 kg |
Unfortunately, there are currently no files available for the selected article number. Please use the contact form to send a request or ask for more information.
If you need additional spare/wearing parts for the selected product or products already in use, please contact us.
 |
Seal kit airArticle number 3620.1542 Recommended Quantity 1 Schematic VP15.08.00.21 |
|---|---|
|
Seal kit spoolArticle number 3620.0102 Recommended Quantity 1 Schematic VP15.01.00 |
|
Seal kit HPArticle number 3620.2955 Recommended Quantity 1 Schematic VP15.05.00.103 |
