| Article number | 3170.0109 |
|---|---|
| Catalog number | GPD 30-2-FKM |
| ATEX Directive | II 2G Ex h IIC T4 Gb X |
| Outlet pressure max. | 600 bar (8,700 psi) |
| Pressure range | up to 1,000 bar / 14,500 psi |
| Article number | 3170.0109 |
|---|---|
| Catalog number | GPD 30-2-FKM |
| ATEX Directive | II 2G Ex h IIC T4 Gb X |
| Outlet pressure max. | 600 bar (8,700 psi) |
| Pressure range | up to 1,000 bar / 14,500 psi |
| Pressure ratio | 1:60 |
| Number of air drive pistons | 2 |
| Mode of action | Double-acting |
| Min. Drive pressure | 1 bar |
| Max. Drive pressure | 10 bar |

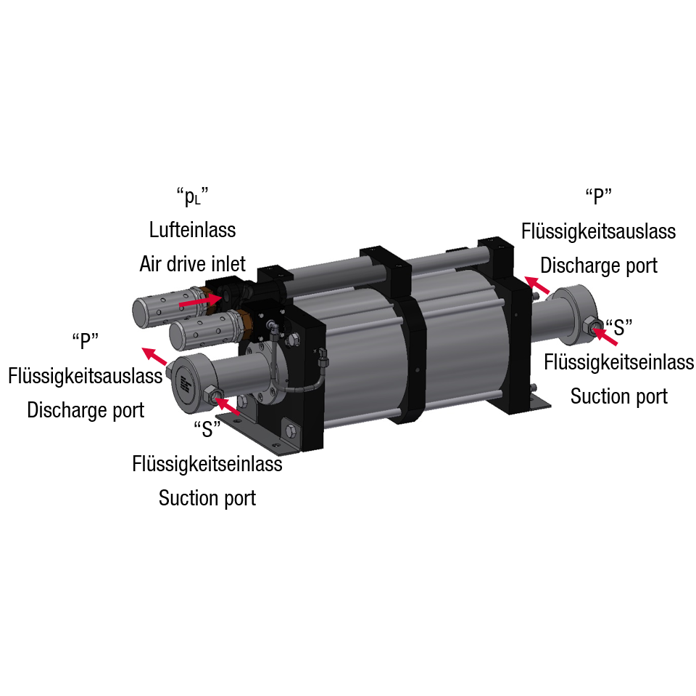

| Air drive inlet PL | 12B - 3/4 BSPP with seal outside |
| Suction port S | 12B - 3/4 BSPP with seal outside |
| Discharge port P | 12B - 3/4 BSPP with seal outside |
| Air drive section modification | Air actuated suction stroke (Standard) |
| HP section modification | Standard |
| More modifications | Standard |
| Seal kit (inlet/outlet) | FKM – Fluoro rubber, good temperature behavior at -25°C to 200°C, media compatibility: high, elastic, very good ozone resistance |
| Temperature option | Standard |
| Dimensions (L x W x H) approx. | 1019 x 290 x 343 mm |
| Weight approx. | 82 kg |
Unfortunately, there are currently no files available for the selected article number. Please use the contact form to send a request or ask for more information.
If you need additional spare/wearing parts for the selected product or products already in use, please contact us.
 |
Seal kit spoolArticle number 3620.2029 Recommended Quantity 1 Schematic VP15.14.82.02 |
|---|---|
|
Seal kit HPArticle number 3650.0135 Recommended Quantity 1 Schematic VP14.02.29 |
|
Seal kit airArticle number 3650.0939 Recommended Quantity 1 Schematic VP14.02.35 |
