| Article number | 3140.0305 |
|---|---|
| Catalog number | GSF 60-2L |
| ATEX Directive | II 2G Ex h IIB T3 Gb X |
| Outlet pressure max. | 1,050 bar (15,225 psi) |
| Pressure range | up to 1,450 bar / 21,000 psi |
| Article number | 3140.0305 |
|---|---|
| Catalog number | GSF 60-2L |
| ATEX Directive | II 2G Ex h IIB T3 Gb X |
| Outlet pressure max. | 1,050 bar (15,225 psi) |
| Pressure range | up to 1,450 bar / 21,000 psi |
| Pressure ratio | 1:126 |
| Number of air drive pistons | 2 |
| Mode of action | Single-acting |
| Min. Drive pressure | 1 bar |
| Max. Drive pressure | 10 bar |

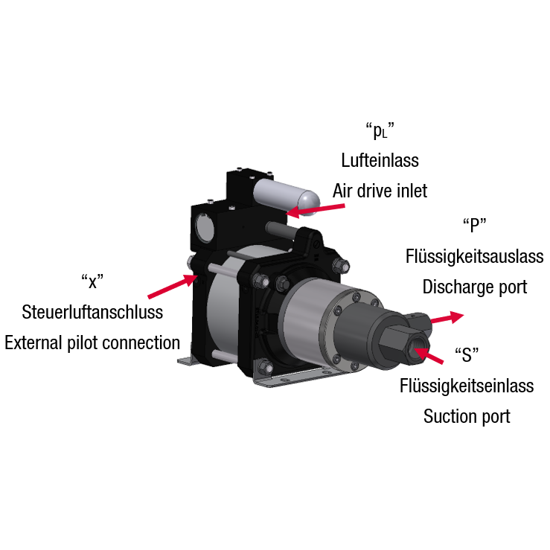

| Air drive inlet PL | 12B - 3/4 BSPP with seal outside |
| Suction port S | 12B - 3/4 BSPP with seal outside |
| Discharge port P | 8B - 1/2 BSPP with seal outside |
| Air drive section modification | Air actuated suction stroke (Standard) |
| HP section modification | Standard |
| More modifications | Standard |
| Seal kit (inlet/outlet) | FKM – Fluoro rubber, good temperature behavior at -25°C to 200°C, media compatibility: high, elastic, very good ozone resistance |
| Fluid compatibility | Standard |
| Temperature option | Standard |
| Dimensions (L x W x H) approx. | 525 x 181 x 272 mm |
| Weight approx. | 22 kg |
Unfortunately, there are currently no files available for the selected article number. Please use the contact form to send a request or ask for more information.
If you need additional spare/wearing parts for the selected product or products already in use, please contact us.
 |
Seal kit spoolArticle number 3620.0102 Recommended Quantity 1 Schematic VP15.01.00 |
|---|---|
|
Seal kit HPArticle number 3620.1056 Recommended Quantity 1 Schematic VP15.11.90.05 |
|
Seal kit airArticle number 3620.1444 Recommended Quantity 1 Schematic VP15.08.00.19 |
