| Article number | 3110.2645 |
|---|---|
| Catalog Number | M 189-2L-NPT |
| Custom tarif number | 84135061 |
| Fluid | Oil |
| Article number | 3110.2645 |
|---|---|
| Catalog Number | M 189-2L-NPT |
| Custom tarif number | 84135061 |
| Fluid | Oil |
| Schematic | VP10.00.579 |
| ATEX Directive | II 2G/2D IIC c TX |
| Outlet pressure max. | 4,000 bar (58,000 psi) |
| Pressure range | up to 4,000 bar / 58,000 psi |
| Pressure ratio | 1:440 |
| Number of air drive pistons | 2 |
| Mode of action | Single-acting |
| Min. Drive pressure | 1 bar |
| Max. Drive pressure | 10 bar |

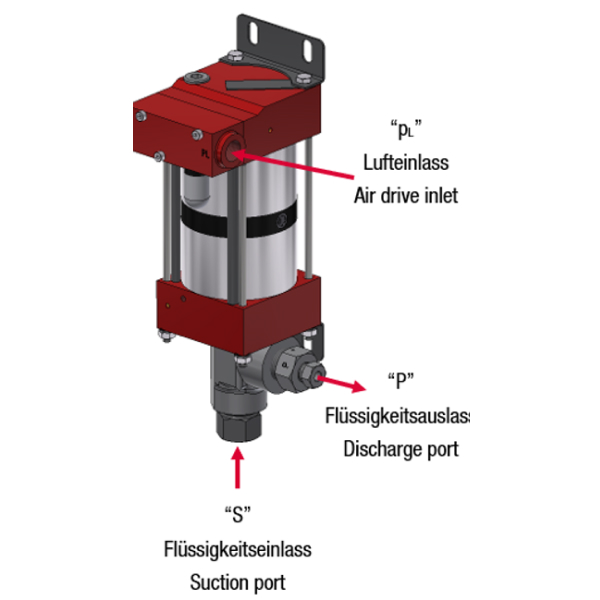

| Air drive inlet PL | 4P - 1/4 NPT |
| Suction port S | 6P - 3/8 NPT |
| Discharge port P | 9/16-18UNF (4H - incl. Collar & Gland) |
| Air drive section modification | Air actuated suction stroke (Standard) |
| HP section modification | Standard |
| More modifications | Standard |
| Seal kit (inlet/outlet) | NBR – Nitrile rubber, good cold and deformation behavior at -30°C to 100°C, media compatibility: low, elastic |
| Fluid compatibility | Standard |
| Temperature option | Standard |
| Dimensions (L x W x H) approx. | 255 x 100 x 112 mm |
| Weight approx. | 3.9 kg |
If you need additional spare/wearing parts for the selected product or products already in use, please contact us.
 |
Seal kit airArticle number 3610.0788 Recommended Quantity 1 Schematic VP10.13.124.02 |
|---|---|
|
Seal kit HPArticle number 3610.1110 Recommended Quantity 1 Schematic VP10.16.00.02 |
|
Seal kit spoolArticle number 3610.5335 Recommended Quantity 1 Schematic VP10.13.275 |
