| Article number | 3110.0142 |
|---|---|
| Catalog number | MSF 8L |
| ATEX Directive | II 2G Ex h IIC T3 Gb |
| Outlet pressure max. | 90 bar (1,305 psi) |
| Pressure range | up to 500 bar / 7,250 psi |
| Article number | 3110.0142 |
|---|---|
| Catalog number | MSF 8L |
| ATEX Directive | II 2G Ex h IIC T3 Gb |
| Outlet pressure max. | 90 bar (1,305 psi) |
| Pressure range | up to 500 bar / 7,250 psi |
| Pressure ratio | 1:9 |
| Number of air drive pistons | 1 |
| Mode of action | Single-acting |
| Min. Drive pressure | 1 bar |
| Max. Drive pressure | 10 bar |

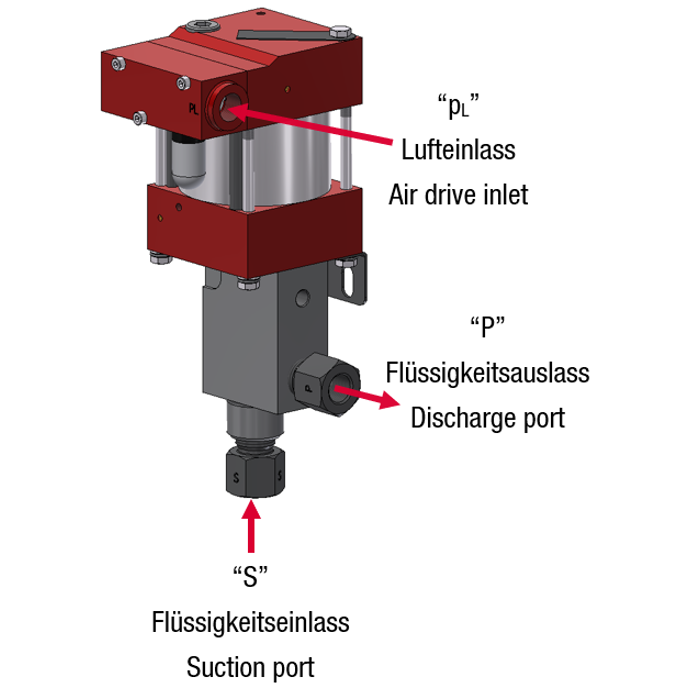

| Air drive inlet PL | 6B - 3/8 BSPP with seal outside |
| Suction port S | 12B - 3/4 BSPP with seal outside |
| Discharge port P | 8B - 1/2 BSPP with seal outside |
| Air drive section modification | Air actuated suction stroke (Standard) |
| HP section modification | Standard |
| More modifications | Standard |
| Seal kit (inlet/outlet) | FKM – Fluoro rubber, good temperature behavior at -25°C to 200°C, media compatibility: high, elastic, very good ozone resistance |
| Fluid compatibility | Standard |
| Temperature option | Standard |
| Dimensions (L x W x H) approx. | 241 x 112 x 120 mm |
| Weight approx. | 7 kg |
Unfortunately, there are currently no files available for the selected article number. Please use the contact form to send a request or ask for more information.
If you need additional spare/wearing parts for the selected product or products already in use, please contact us.
 |
Seal kit airArticle number 3610.0841 Recommended Quantity 1 Schematic VP10.13.141.02 |
|---|---|
|
Seal kit HPArticle number 3610.1066 Recommended Quantity 1 Schematic VP10.15.00.02 |
|
Seal kit spoolArticle number 3610.5335 Recommended Quantity 1 Schematic VP10.13.275 |
